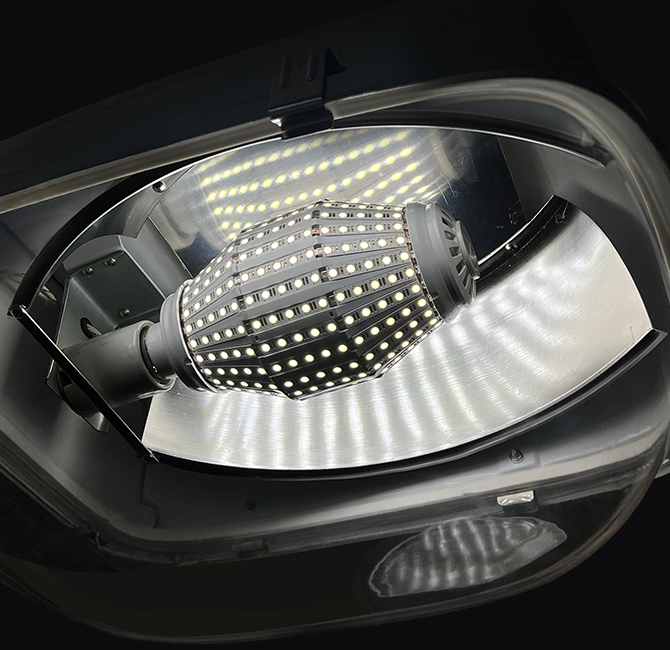

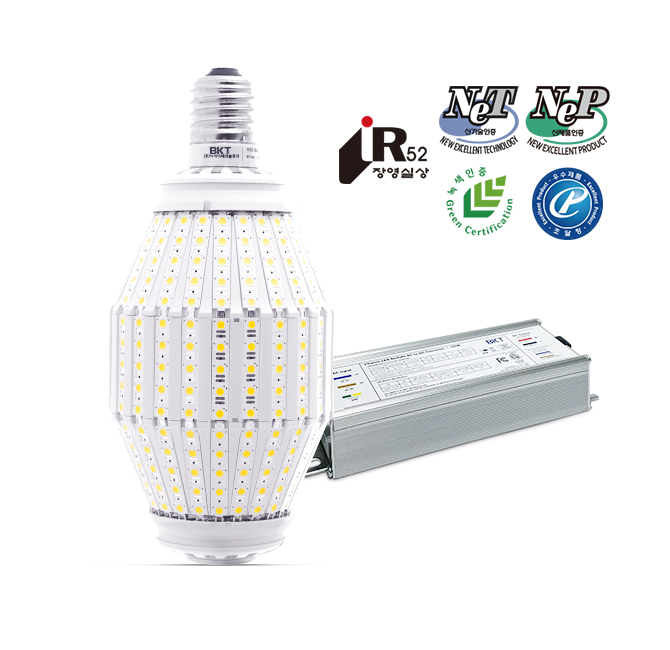

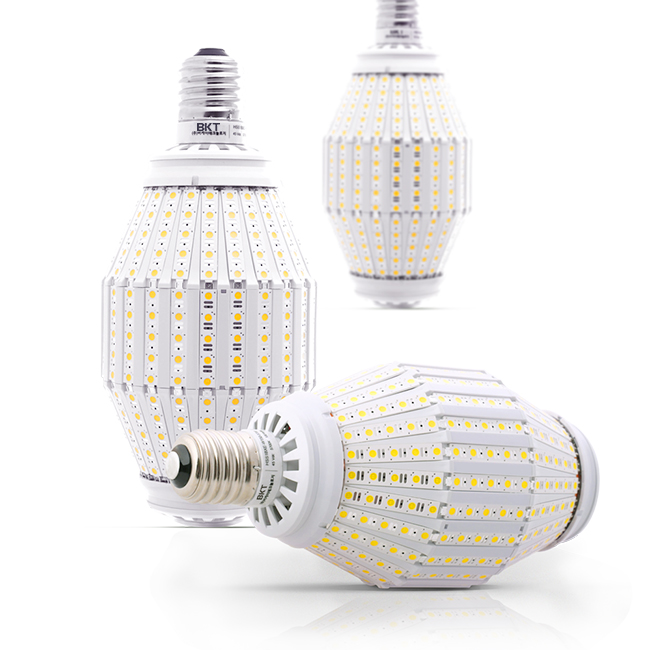

Vitamin lamp diffused

For substitution of HID lights with high power

  • Model name
  • HSS1BXE-W060 / HSS1BXE-W075
    HSS1BXE-W090 / HSS1BXE-W120
    HSS1BXE-W150
  • Input voltage
  • DC (45V / AC direct wire connection prohibited)
  • Power consumption
  • 50 W, 60W, 75W, 90W, 120W, 150W
  • Color temperature
  • 3000K, 4000K, 5000K, 5700K
  • Product Specification
  • Ø122 * 266mm
  • Converter
  • External converter type / constant current type

Product Spec

Vitamin bulb Plus

  • Model name
  • Item Identification Number
  • Alternative products
    (W)
  • Power Consumption
    (W)
  • Total light intensity
    (lm)
  • Luminous efficiency
    (lm/W)
  • Color temperature
    (K)
  • Price
  • Model nameHSS1BXE-W150-5700

  • Item Identification Number23284170

  • Alternative products(W)250~400 W

  • Power Consumption(W)150W

  • Total light intensity(lm)19,300 lm

  • Luminous efficiency(lm/W)130 lm/w

  • Color temperature(K)5,700 K

  • price235,000


    구매하기
  • Model nameHSS1BXE-W120-5700

  • Item Identification Number23284168

  • Alternative products(W)250 W

  • Power Consumption(W)120W

  • Total light intensity(lm)16,200 lm

  • Luminous efficiency(lm/W)135 lm/w

  • Color temperature(K)5,700 K

  • price215,000


    구매하기
  • Model nameHSS1BXE-W090-5700

  • Item Identification Number23284155

  • Alternative products(W)200~250 W

  • Power Consumption(W)90W

  • Total light intensity(lm)12,600 lm

  • Luminous efficiency(lm/W)140 lm/w

  • Color temperature(K)5,700 K

  • price215,000


    구매하기
  • Model nameHSS1BXE-W075-5700

  • Item Identification Number23284145

  • Alternative products(W)175~200 W

  • Power Consumption(W)75W

  • Total light intensity(lm)10,575 lm

  • Luminous efficiency(lm/W)141 lm/w

  • Color temperature(K)5,700 K

  • price198,000


    구매하기
  • Model nameHSS1BXE-W060-5700

  • Item Identification Number23284148

  • Alternative products(W)175 W

  • Power Consumption(W)60W

  • Total light intensity(lm)9,000 lm

  • Luminous efficiency(lm/W)150 lm/w

  • Color temperature(K)5,700 K

  • price198,000


    구매하기
  • Model nameHSS1BXE-W150-3000

  • Item Identification Number23284169

  • Alternative products(W)250~400 W

  • Power Consumption(W)150W

  • Total light intensity(lm)16,000 lm

  • Luminous efficiency(lm/W)106 lm/w

  • Color temperature(K)3,000 K

  • price235,000


    구매하기
  • Model nameHSS1BXE-W120-3000

  • Item Identification Number23284167

  • Alternative products(W)250 W

  • Power Consumption(W)120W

  • Total light intensity(lm)13,400 lm

  • Luminous efficiency(lm/W)111 lm/w

  • Color temperature(K)3,000 K

  • price215,000


    구매하기
  • Model nameHSS1BXE-W090-3000

  • Item Identification Number23284154

  • Alternative products(W)200~250 W

  • Power Consumption(W)90W

  • Total light intensity(lm)10,500 lm

  • Luminous efficiency(lm/W)116 lm/w

  • Color temperature(K)3,000 K

  • price215,000


    구매하기
  • Model nameHSS1BXE-W075-3000

  • Item Identification Number23284153

  • Alternative products(W)175~200 W

  • Power Consumption(W)75W

  • Total light intensity(lm)9,020 lm

  • Luminous efficiency(lm/W)120 lm/w

  • Color temperature(K)3,000 K

  • price198,000


    구매하기
  • Model nameHSS1BXE-W060-3000

  • Item Identification Number23284150

  • Alternative products(W)175 W

  • Power Consumption(W)60W

  • Total light intensity(lm)7,500 lm

  • Luminous efficiency(lm/W)125 lm/w

  • Color temperature(K)3,000 K

  • price198,000


    구매하기

* Warranty period Lamp 10 years / Converter 3 years

* All products include their VATs and converters.

* Certifications of all products

Vitamin bulb Lite

  • Model name
  • Item Identification Number
  • Alternative products
    (W)
  • Power Consumption
    (W)
  • Total light intensity
    (lm)
  • Luminous efficiency
    (lm/W)
  • Color temperature
    (K)
  • Price
  • Model nameHSS1BXE-W150-5000L

  • Item Identification Number23542571

  • Alternative products(W)250~400 W

  • Power Consumption(W)150W

  • Total light intensity(lm)18,704 lm

  • Luminous efficiency(lm/W)125 lm/w

  • Color temperature(K)5,000K

  • Price172,000


    구매하기
  • Model nameHSS1BXE-W120-5000L

  • Item Identification Number23542570

  • Alternative products(W)250 W

  • Power Consumption(W)120W

  • Total light intensity(lm)16,199 lm

  • Luminous efficiency(lm/W)135 lm/w

  • Color temperature(K)5,000K

  • Price169,000


    구매하기
  • Model nameHSS1BXE-W090-5000L

  • Item Identification Number23542569

  • Alternative products(W)200~250 W

  • Power Consumption(W)90W

  • Total light intensity(lm)12,609 lm

  • Luminous efficiency(lm/W)140 lm/w

  • Color temperature(K)5,000K

  • Price169,000


    구매하기
  • Model nameHSS1BXE-W075-5000L

  • Item Identification Number23542568

  • Alternative products(W)175~200 W

  • Power Consumption(W)75W

  • Total light intensity(lm)10,865 lm

  • Luminous efficiency(lm/W)145 lm/w

  • Color temperature(K)5,000K

  • Price159,000


    구매하기
  • Model nameHSS1BXE-W060-5000L

  • Item Identification Number23284147

  • Alternative products(W)175 W

  • Power Consumption(W)60W

  • Total light intensity(lm)7,448 lm

  • Luminous efficiency(lm/W)149 lm/w

  • Color temperature(K)5,000K

  • Price159,000


    구매하기
  • Model nameHSS1BXE-W150-4000L

  • Item Identification Number23561501

  • Alternative products(W)250~400 W

  • Power Consumption(W)150W

  • Total light intensity(lm)17,768 lm

  • Luminous efficiency(lm/W)118 lm/w

  • Color temperature(K)4,000 K

  • Price172,000


    구매하기
  • Model nameHSS1BXE-W120-4000L

  • Item Identification Number23561502

  • Alternative products(W)250 W

  • Power Consumption(W)120W

  • Total light intensity(lm)15,389 lm

  • Luminous efficiency(lm/W)128 lm/w

  • Color temperature(K)4,000 K

  • Price169,000


    구매하기
  • Model nameHSS1BXE-W090-4000L

  • Item Identification Number23561503

  • Alternative products(W)200~250 W

  • Power Consumption(W)90W

  • Total light intensity(lm)11,978 lm

  • Luminous efficiency(lm/W)133 lm/w

  • Color temperature(K)4,000 K

  • Price169,000


    구매하기
  • Model nameHSS1BXE-W075-4000L

  • Item Identification Number23561504

  • Alternative products(W)175~200 W

  • Power Consumption(W)75W

  • Total light intensity(lm)10,321 lm

  • Luminous efficiency(lm/W)138 lm/w

  • Color temperature(K)4,000 K

  • Price159,000


    구매하기
  • Model nameHSS1BXE-W060-4000L

  • Item Identification Number23284146

  • Alternative products(W)175 W

  • Power Consumption(W)60W

  • Total light intensity(lm)7,075 lm

  • Luminous efficiency(lm/W)142 lm/w

  • Color temperature(K)4,000 K

  • Price159,000


    구매하기

* Warranty period Lamp 3 years / Converter 3 years

* All products include their VATs and converters.

* Certifications of all products

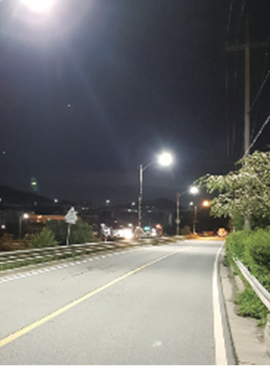

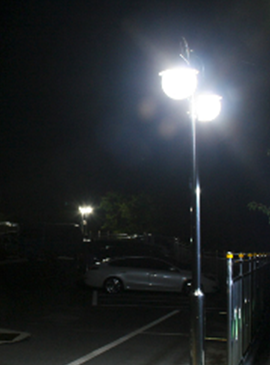

Image of installation

  • Youngduk Marine Environment Experience Center

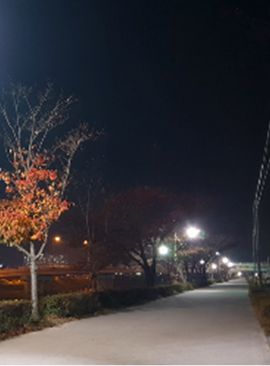

  • Gimcheon Walking Routes

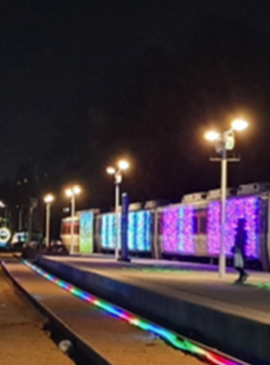

  • Hwarangdae Station Railway at Gongneung in Nowon-gu

  • Road Lighting at Seongnam City

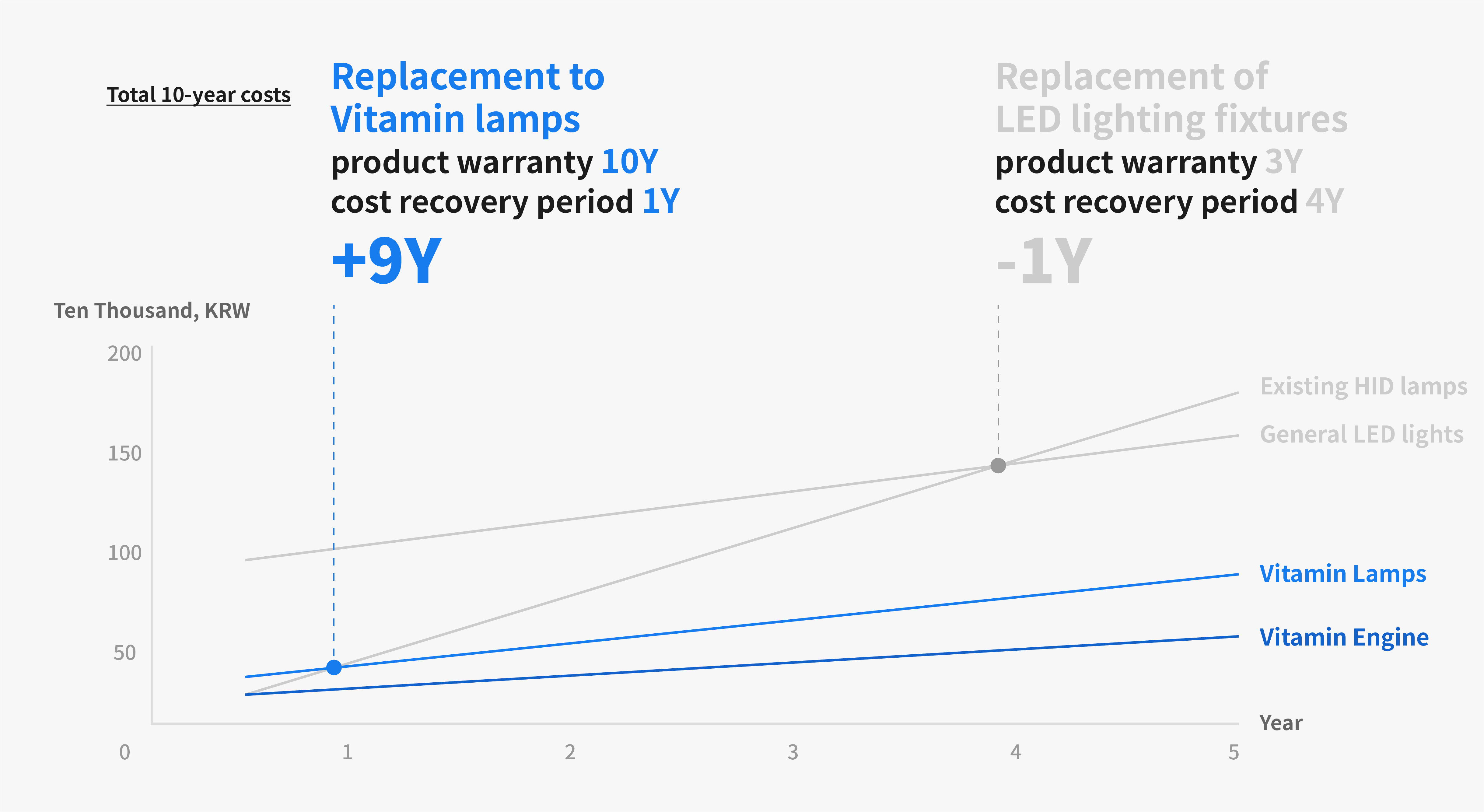

Review of economic efficiency

Comparison of economic efficiency

5,315

900 million

Vitamin Lamps

1,175

200 million

General LED lights

  • Period of use
    1 year
    2 years
    3 years
    4 years
    5 years
    Economic efficiency
    Review Results
  • (Cumulative)replacement quantity
    Vitamin Lamps LED street light fixtures
    1 year1,063 1 year235
    2 years2,126 2 years470
    3 years3,189 3 years705
    4 years4,252 4 years940
    5 years5,315 5 years1,175
    Cumulative replacement quantity
    5,315
    +4.52 times
    Cumulative replacement quantity
    1,175
  • Cost of saving electricity
    Vitamin Lamps LED street light fixtures
    1 year61,142,697 1 year13,516,965
    2 years122,285,394 2 years27,033,930
    3 years183,428,091 3 years40,550,895
    4 years244,570,788 4 years54,067,860
    5 years305,713,485 5 years67,584,825
    Cumulative savings cost
    KRW 917,140,455
    +4.52 times
    Cumulative savings cost
    KRW 202,754,475

* Comparison conditions | Five-year comparison of the quantity of LED lights that can be replaced with a budget of KRW 200 million annually

* Public lighting discount electricity rate reflected

* Unit price of saved annual electric rate based on KEPCO electric rate for Industrial Service (B) / Basic fee of KRW 6,290 + electric rate for industrial service (B) (volume) KRW 85.9 per kW

One-year electric rate of a sodium lamp (275W) - Electric rate of a Vitamin lamp (120W) or LED street light fixture (120W) for one year

KRW 177,529 (sodium lamp) - KRW 120,011 (Vitamin lamp, LED street light fixture) = KRW 57,519 (saving amount)

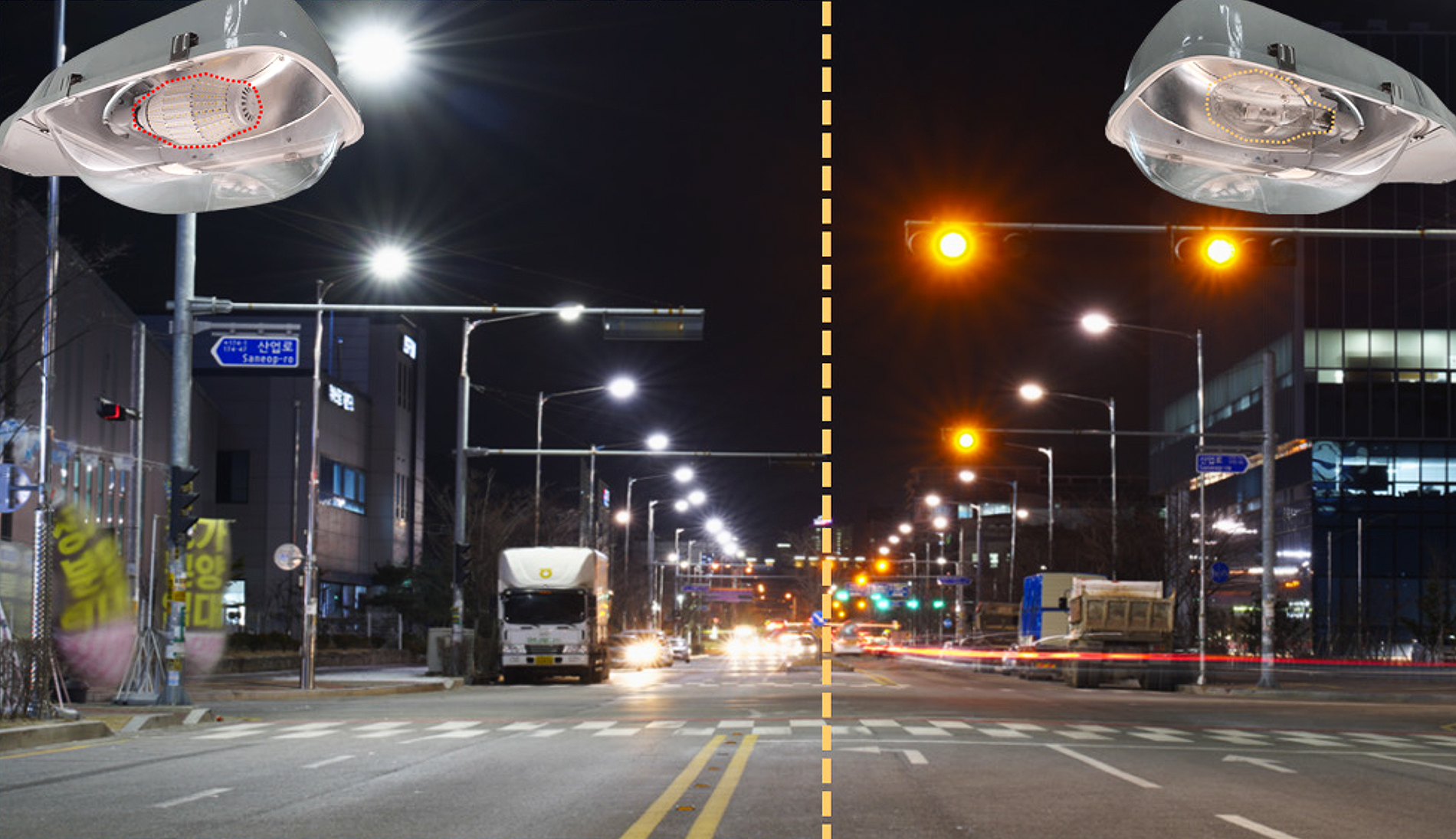

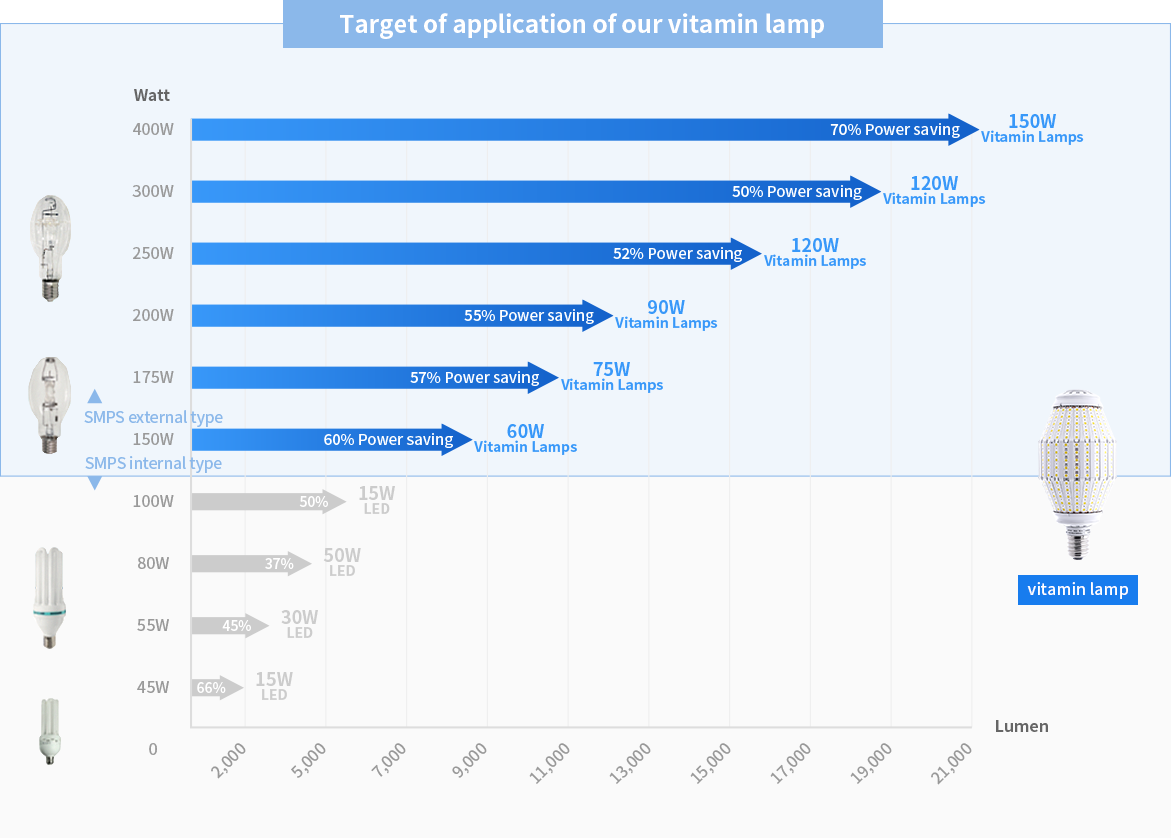

Comparison with existing lamps

Enforced the energy efficiency rating system of LED lights (from April 1, 2018).

Luminous efficacy of LED / power factor / color temperature / color rendering index test

  • 1st grade
    Lamp efficiency

Calculation formula for energy efficiency grade

  • R : 0.71
    Consumption efficiency rating indicator
    1st grade R ≤ 0.90
  • Standard consumption efficiency
    100 [Im/W]

    Luminous efficacy of the model
    140 [Im/W]

Vitamin lamp efficiency rating
Efficiency "Grade 1"

Test result

Period of use Unit Result Notes
HSS1BXE-W150-5700/SN:
P804020001
HSS1BXE-W150-5700/SN:
P804020002
Input Voltage V 220.0 220.0 -
Input Current A 0.711 0.707 -
Input Power W 155.8 153.2 -
Power Factor - 0.99 0.98 -
Initial Luminous Flux Im 19.931 21.499 -
Luminous Efficiency Im/W 127.9 140.3 -
Correlated Color Temperature K 5.522 5.397 -
Color Rendering Index - 85.5 82.8 -

How to Install

  • Connect the LED converter.

  • Directly connect to AC.

  • Use a HID stabilizer.

  • Use other existing ballasts.
